X - Series
Peplink Balance SDX
| SDX Main Chassis (BPL-SDX) | |
| WAN Interface | 2x 10G SFP+ Ports 2x GE Ports 2x USB 3.0 Ports 1x Expansion Module (Option) |
| LAN Interface | 8x GE Ports with PoE+ Output |
| Router Throughput | 12 Gbps |
| PepVPN / SpeedFusion Throughput# | No Encryption: 1 Gbps 256-bit AES: 600 Mbps |
| Recommended Users | 500-2000 |
| Max PepVPN/SpeedFusion Peers | 300 |
| Power Input | AC Input 100V - 240V |
| PoE Output | 8x 802.3at PoE+ Output |
| Power Consumption | 80W System* , 330W PoE+ Power Budget |
| Dimensions | 438 x 340 x 44 mm |
| Weight (No Modules) | 5,3 kg |
| Operating Temperature | 0° – 40°C |
| Humidity | 5% – 90% (non-condensing) |
| Certification | FCC, IC, CE |
| Warranty | 1-Year Limited Warranty |
Module
Overview Expansion Modules
Product Code
Interface
Antenna Connector
Power Consumption
Weight

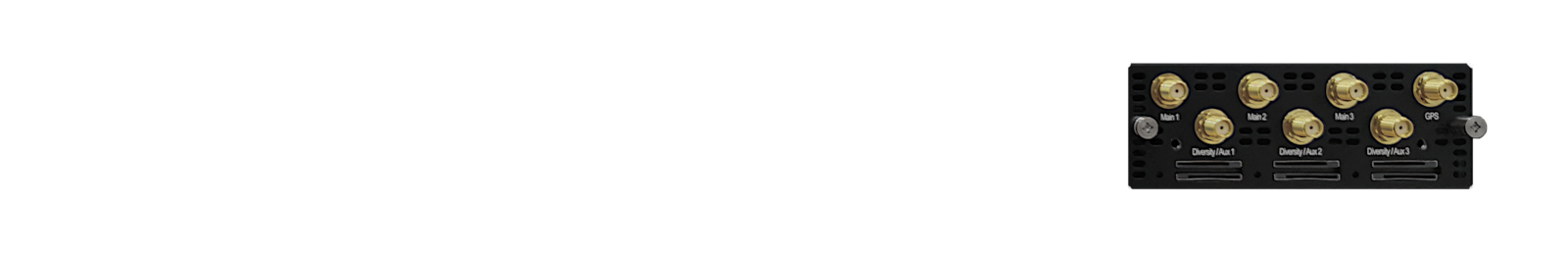

3 x LTE-A Module
X-Series
EXM-3LTEA-W (LTE-A)
EXM-3LTEA-K (LTE-A Pro)
3 x Embedded LTE-A Cellular Modems with redundant SIM-Slots
6 x SMA Cellular Antenna Connector
1 x SMA GPS Antenna Connector
20 W
0,375 kg

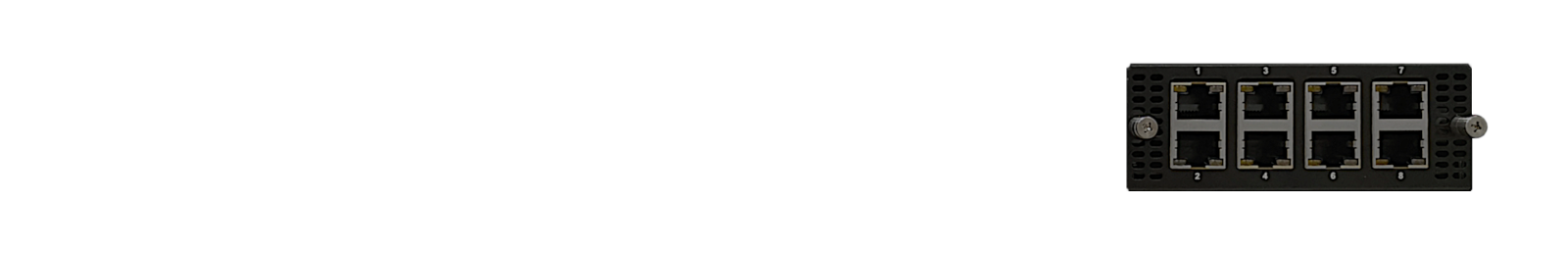

8 x GE PoE+ Module
X-Series
EXM-8C
8 x 10/100/100M Ethernet Ports
n/a
15 W (105 W with PoE Output)
0,475 kg

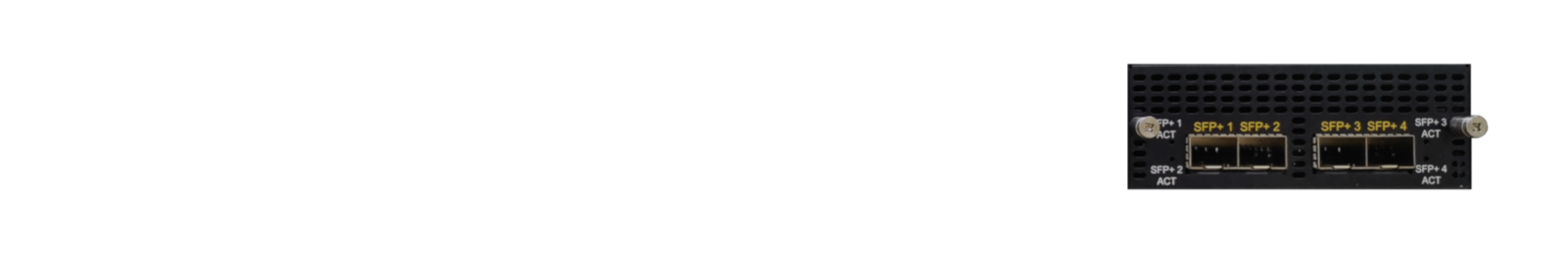

4 x SFP+ Module
x-Series
EXM-4F
4 x SFP+ Ports
n/a
11 W
0,375 kg
Modell-Varianten
| Product Code | Description |
| BPL-SDX | SDX Base Model, No Expansion module, 2x GE WAN Ports, 2x 10GbE SFP+ WAN ports, 8x GE LAN ports, 2x USB WAN |
| BPL-SDX-LW1 | SDX, 3x LTEA (Worldwide) Modems via Exp. Module, 2x GE WAN Ports, 2x 10GbE SFP+ WAN ports, 8x GE LAN ports, 2x USB WAN |
| BPL-SDX-LP1 | SDX, 3x LTEA (APAC) Modems via Exp. Module, 2x GE WAN Ports, 2x 10GbE SFP+ WAN ports, 8x GE LAN ports, 2x USB WAN |
| BPL-SDX-F1 | SDX, 4x 10G SFP+ WAN Ports via Exp. Module, 2x GE WAN Ports, 2x 10GE SFP+ WAN ports, 8x GE LAN ports, 2x USB WAN |
| BPL-SDX-C1 | SDX, 8x GE WAN Ports via Exp. Module, 2x GE WAN Ports, 2x 10GE SFP+ WAN ports, 8x GE LAN ports, 2x USB WAN |
Zubehör
| Product Code | Carrier |
| ACW-748 | Rack Mount Ears for Balance SDX |
| ACW-752 | Rack Mount Rails for Balance SDX |
Die X-Serie ist nun mit CAT18-Modems erhältlich. 1,2 Gbit down und 150 Mbps up.
Turbo 4G für EPX, SDX und MBX….
