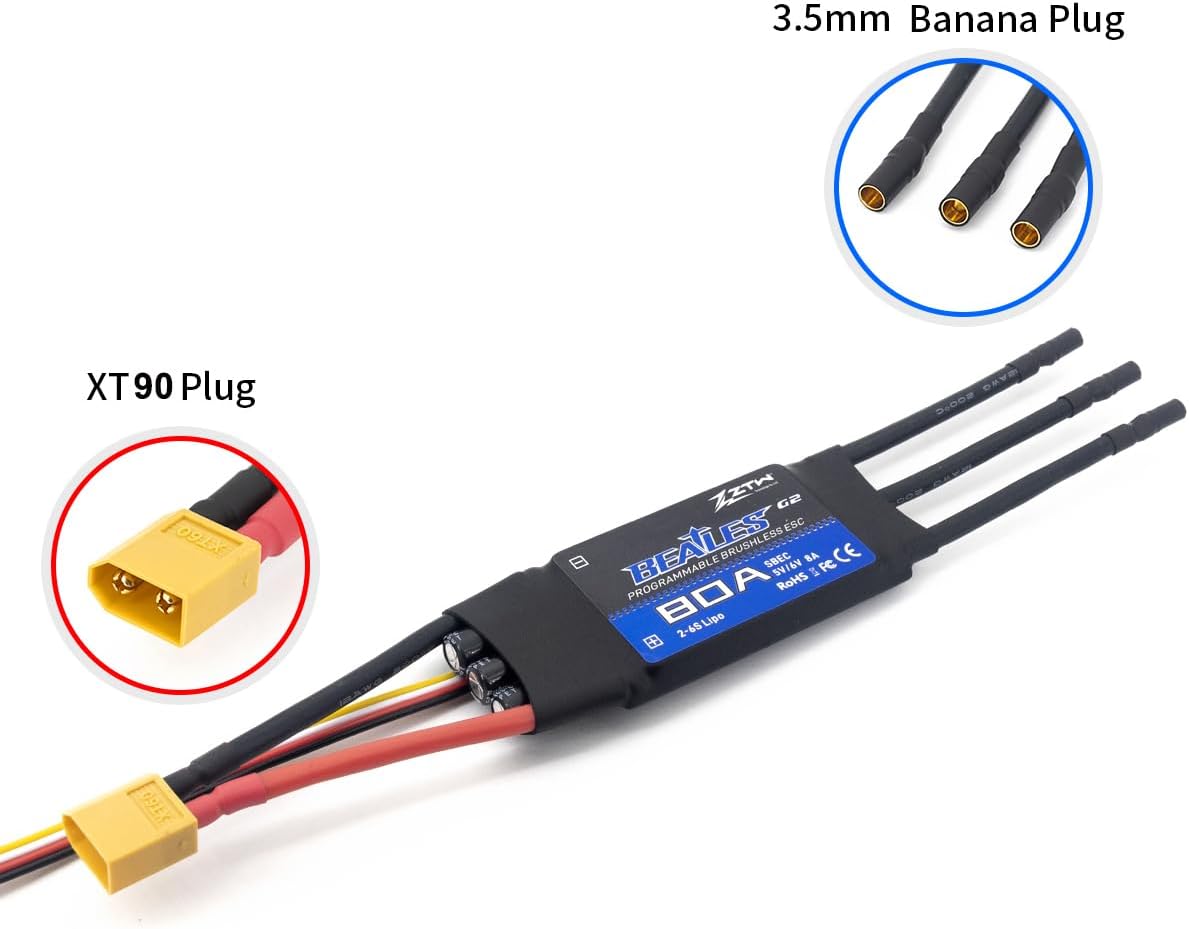

ZTW Beatles G2 80A ESC with Connectors SBEC Output 8A/5,6V for RC Fixed Wing Airplane 2-6S or DIY Project Need Electronic Speed Controller
Product details
| Management number | 224825896 | Release Date | 2026/05/09 | List Price | US$17.20 | Model Number | 224825896 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Key Features : Protections:Phase Loss Protection,Signal Loss Protection,Over-Heat Protection, Synchronous rectification which with more energy-saving and high efficiency. Functions programmable : Brake,cut off voltage,softstart,motor direction etc. Adjustable softstart according to different RPM and Pole Motor. Supporting High RPM and Pole Motor. Description : Size:90mm x 37mm x 10mm (LxWxH). Battery : 2-6S Lipo / 5-18NC. Voltage : 7.6V-22.8V. Current : 80A ,peak 100A for 10 seconds. BEC output : 8A/5V or 6V, peak 18A Weight : 75g. Motor Type : Brushless (no brushed) RPM support：200,000 for 2 P ,82,000 for 6 P,42,000 for 12 P. Connectors: Power side: XT60 Motor side: 3.5 bullet female Package includes : ESC x 1 User Manual x 1 Application RC Airplane with inrunner motor or EDF system. RC Muliticopter multiroter or any other DIY project of industry. Note !! Please do make the throttle calibration for the first time using or changed the TX. ZTW and HAWK HOBBY have 100% free warranty for this ESC.
- 32bit microprocessor which with stronger computing ability and faster running speed.
- Multiple protections: start-up,over-heat,low-voltage cutoff,signal loss,phase loss and so on.
- Stronger BEC output up to 8A/5.5V continuous and peak to 18.
- Super smooth, accurate , programmable throttle linearity and throttle response.
- Supporting high RPM motors , programmable by LCD card and transmitter.
| UPC | 770523575070 |
|---|---|
| ASIN | B0BM3TMBZ4 |
| Size | 3.54 x 1.46 x 0.39 inches |
| Color | Black |
| Theme | Sport |
| Set Name | Beatles G2 |
| Brand Name | ZTW |
| Model Name | 111000111800 |
| Manufacturer | ZTW |
| Model Number | 111000111800 |
| Power Source | Battery Powered |
| Material Type | Metal |
| Item Type Name | Airplane ESC |
| Operation Mode | Remote Control |
| Item Dimensions | 3.54 x 1.46 x 0.39 inches |
| Number of Items | 1 |
| Toy Vehicle Form | Airplane |
| Additional Features | Portable |
| Battery Description | Lithium-Ion Polymer |
| Included Components | Rc airplane ESC |
| Is Assembly Required | No |
| Age Range Description | Kid |
| Are Batteries Required | Yes |
| Batteries are Included | No |
| Manufacturer Part Number | 111000111800 |
| Manufacturer Maximum Age MONTHS | 960 |
| Manufacturer Minimum Age MONTHS | 18.00 |
