Yeeco AC 110V 10000W SCR Electronic Voltage Regulator Motor Speed Control Thermostat Governing Governor dimmer
Product details
| Management number | 218143258 | Release Date | 2026/05/03 | List Price | US$10.80 | Model Number | 218143258 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Parameters: Using Voltage: AC 110V Maximum power: 10000W (connected resistive load) Long term operating power: 7000W Voltage Regulation: AC 0 - input supply voltage Size :( length) 111MM * (width) 77MM * 37MM (excludingHandle) How to use: SCR regulator Connects to the front with the electrical circuit,Input and output lines Respectively Connect，do not need to Distinguish between Live Wire and Neutral Wire.Turn the potentiometer Rotating rod, Can play dimming,Speed Control,Regulator,thermostat Effect. Application: The use of new ultra-high-power two-way SCR,Resistive load can be adjusted between 0 ---- input voltage,For use with appliances.Such as: Electric furnace,Water heaters heat transfer,Lighting Dimmer,Large motor Speed Control and so on.Available for less than 10,000 watts of electric power (resistive load) of large electrical power Using due to the large, it is generally sufficient household appliances or small factories using. Note: Must Pay attention to the temperature rise when using in the first time, if it exceeds 80 °C,please enhance heatsink,or would burn out module and load.The power must leave 2/3 margin when connect to inductive load or Capacitive load. Product Features 1 trigger circuit voltage regulator IC control 2 SCR special increase dual protection varistors and RC snubber circuit。 3. Add intelligent temperature control fan to improve the cooling effect Wide application: electric furnace, water heater, lamps, small motor, electric iron etc packing including： 1x AC 110V SCR Super High Power 10000W Electronic regulator

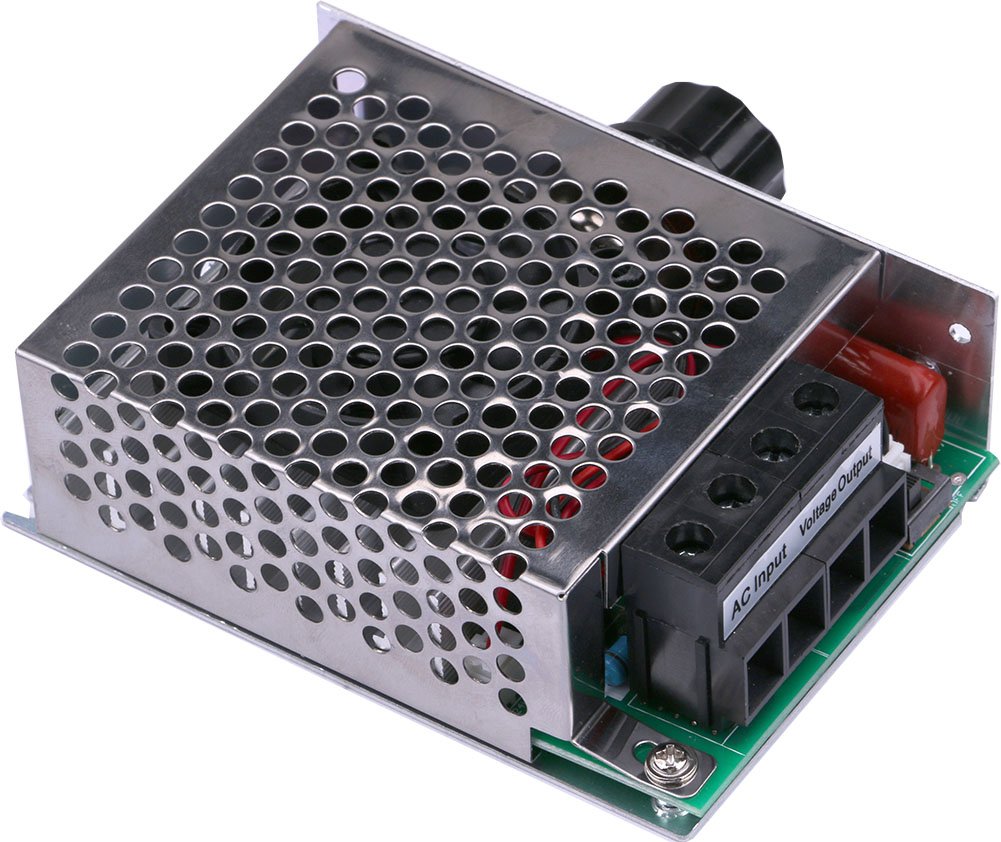

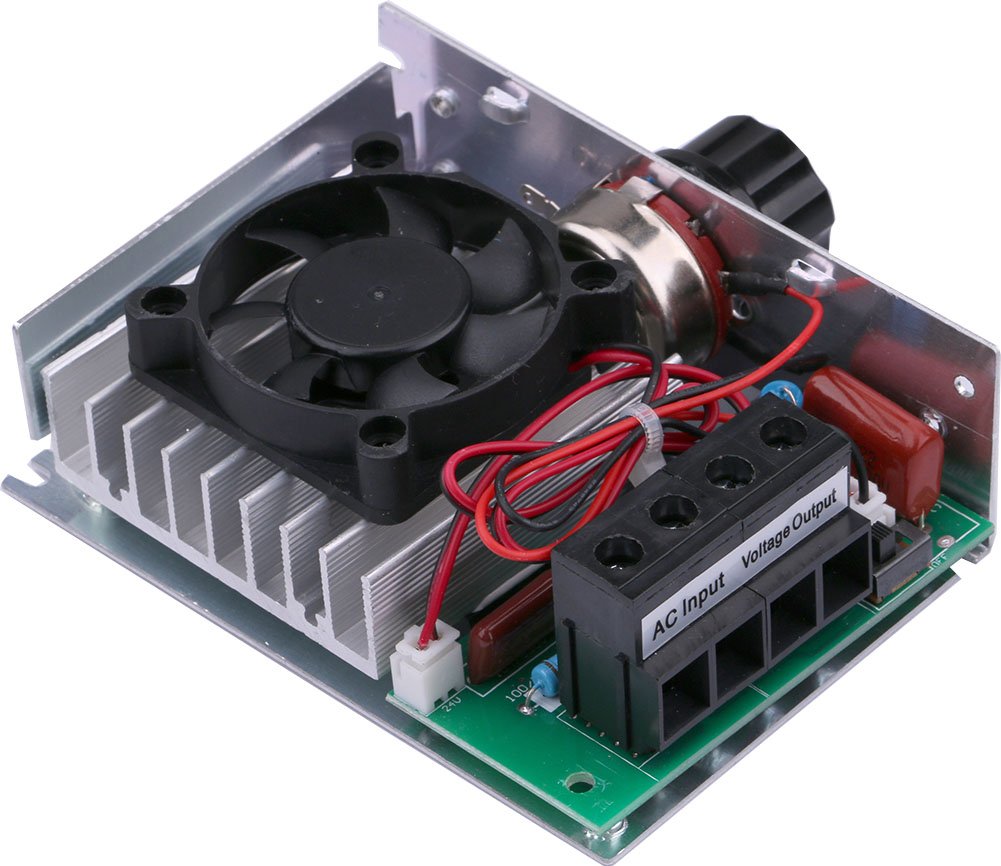

- AC 10000W SCR regulator with aluminum shell and Intelligent fan
- Long term operating power: 7000W; Maximum power: 10000W (connected resistive load), the load cannot exceed the specified maximum power 10000W
- NOTE: Must Pay attention to the temperature rise when using in the first time, if it exceeds 80 °C, please enhance heatsink
- The power must leave 2/3 margin when connect to inductive load or Capacitive load
- If there are any problems with our product, don’t hesitate to contact us, we would do anything for your satisfaction
| UPC | 701203237629 |
|---|---|
| Model | 1300259 |
| Wattage | 10000 watts |
| Terminal | Screw |
| Brand Name | Yeeco |
| Unit Count | 1 Count |
| Item Weight | 1 Kilograms |
| Part Number | Y1300259 |
| Switch Type | SCR |
| Circuit Type | 2-way |
| Contact Type | Normally Connected |
| Control Type | Manual |
| Manufacturer | Yeeco |
| Actuator Type | Rotary |
| Material Type | Aluminum |
| Mounting Type | Surface Mount |
| Connector Type | Wire Leads |
| Control Method | Touch |
| Current Rating | 90.91 Amps |
| Operation Mode | manual |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Operating Voltage | 110 Volts |
| Specification Met | CE |
| Compatible Devices | Electric furnace, Water heaters, Lighting, Large motor, Household appliances, Small factory equipment |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
