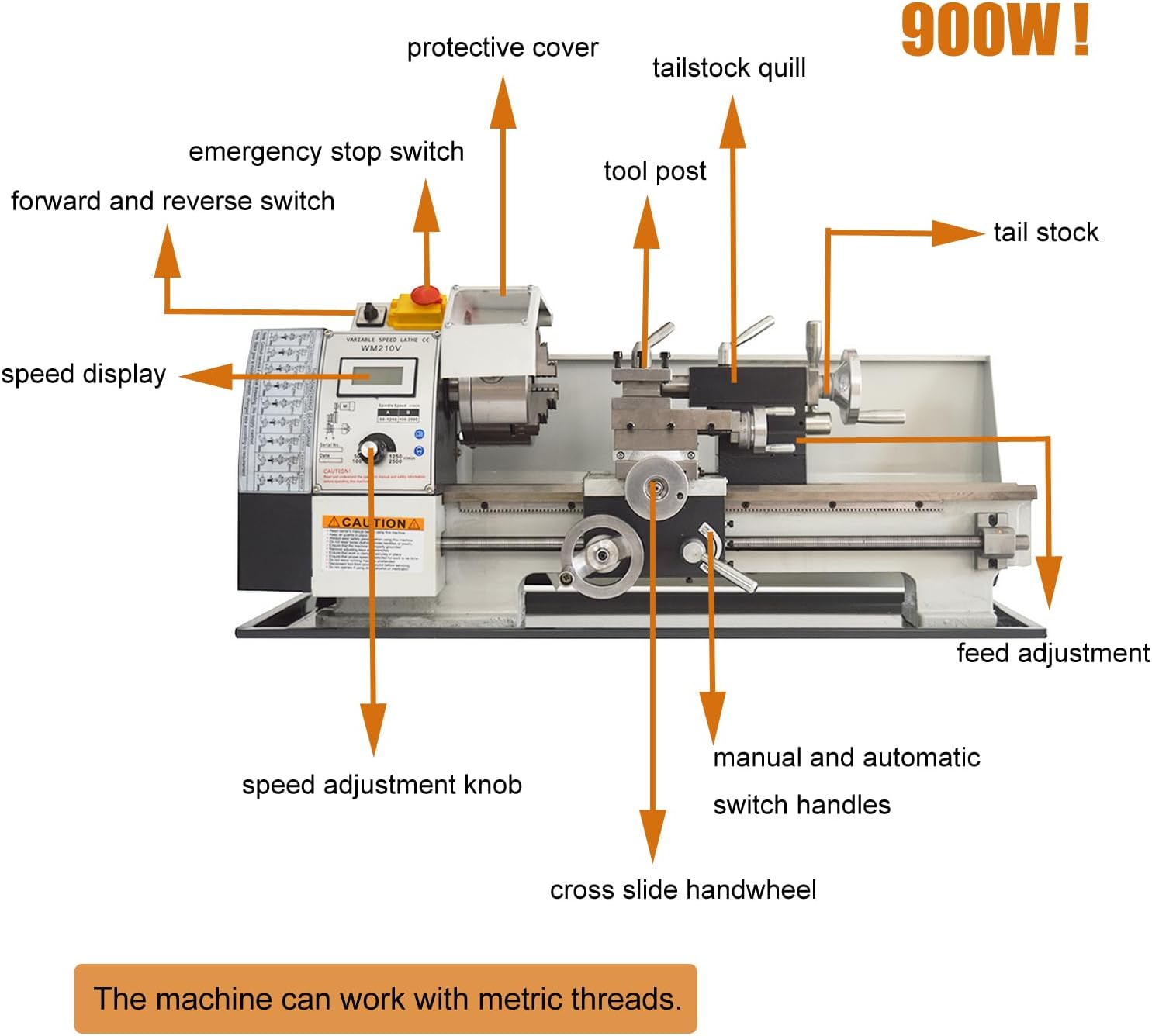

WM210V Mini Metal Lathe Metric Precision Metal Bench Lathe Metalworking Lathe Bench Metal Milling Machine Miniature Lathe Milling Machine 900W 110V

Model: WM120V Motor: 110V brushless motor Voltage: AC110V 50/60Hz Power: 900W Length of center: 15.7"/400mm Swing over bed: 8.3"/210mm Rotary diameter of tool rest: 5.51"/140mm Spindle bore: 1.50"/38mm Diameter of chuck: 4.92"/125mm Width of lathe bed: 3.94"/100mm Number of spindle speeds: Infinitely variable speeds Spindle taper: MT5 Knife rest labour: Horizontal four-station Spindle rotation speed: 50-2250rpm Range of metric threads: 0.5-3mm Range of inch threads(optional accessory): 10-44T.P.I Precision of the spindle: 0.01mm Automatic feed range: 0.1-0.2mm Maximum stroke of tool rest plate: 2.16"/55mm Maximum stroke of middle plate: 2.95"/75mm Maximum stroke of bottom plate: 10.87"/276mm Maximum stroke of tailstock sleeve: 2.36"/60mm Tail frame taper: MT2 The machine uses metric threads.

• QUALITY MATERIAL: High-precision three-jaw chucks with 125mm/4.92" clamping diameter are used to clamp square and round materials firmly. Equipped with metal gear, the machine has strong power, and more accurate transmission.
• HIGH EFFICIENCY: With the MT2 taper in tailstock spindle, this lathe machine is capable of adjusting set screws for accurate operation and large spindle bore with diameter of 38mm/1.5" can insert material from the aperture of the machine head.
• HIGH PRECISION: There are precise dials which are provided on the saddle handle, the tailstock handle and the movable center, allowing for more accurate and professional work, saving time and effort.
• ADJUSTABLE: There is a stepless variable speed switch, the spindle speed is devided into high and low two gears: 50-1250rpm/m and 1250-2250 rpm/m . The adjustable 4-way tool post on the lathe allows you to easily change cutting tools.
• RANGE OF USAGES: The machine is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface and so on.
