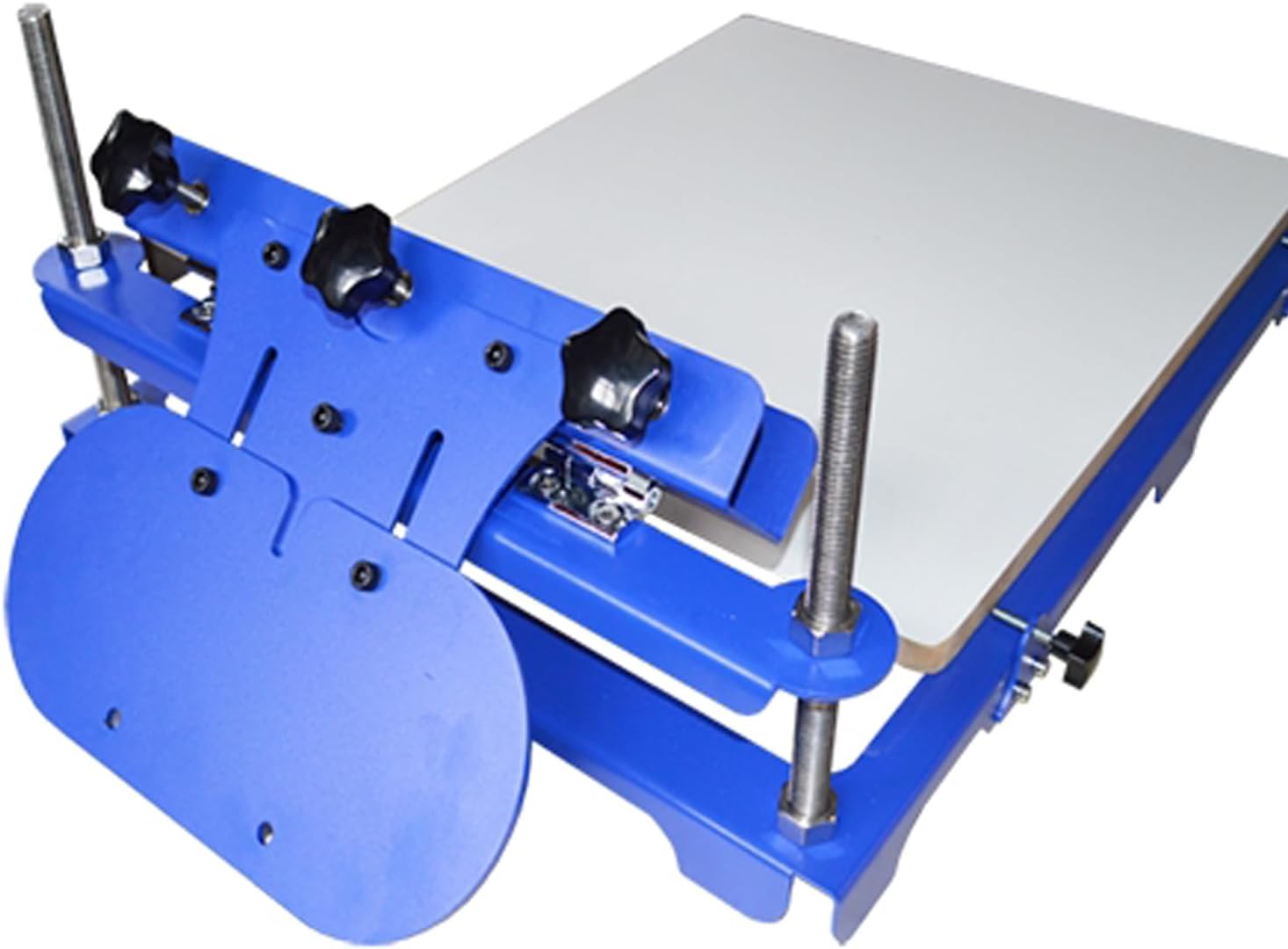

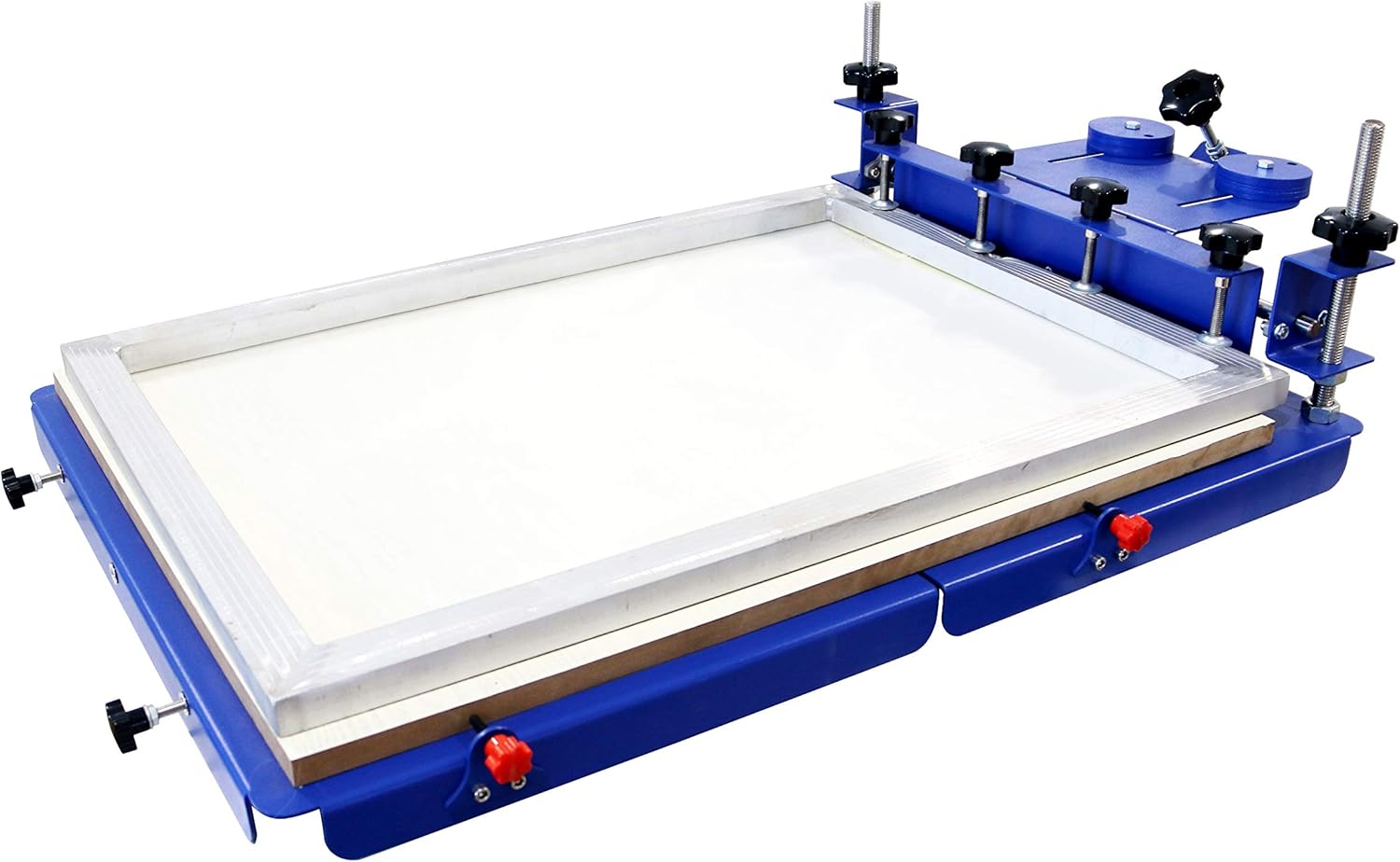

INTBUYING 24x20inch Screen Printing Machine with Micro-registration for PCB SMT T-Shirt DIY

The micro-adjustable screen press with large printing platen is one of our newest model.It has kept functions of traditional one, such as adjusting platen right and left, back and forth; adjusting height of screen chucks for suiting different substrates, etc. In addition, it has several special features.ParameterPlaten sizes:24"x20"x0.7" (620x520x18mm)Length of screen clamps is 14.5" (370mm).Adjustable range of up-and-down screw bar is 4.3" (110mm).Net Weight: 40Lb (18kg)Shipping Weight: 46Lb (21kg)Machine sizes: 30"x22"x10" (76x56x26cm)Package sizes: 32"x24"x5" (83x62x13cm)Item:006015

• 【Bigger Pallet】The equipped platen of this screen printer ais much bigger than the normal ones, which is especially suitable for printing on other hard substrates who have a certain height such as advertising boards, cartons , iron box, wood, glass, metal plate, circuit board, various plastic plates, etc.And two machines together can achive the printing of about 24*60inches(60*150cm).
• 【Stable Printing Process】Specially designed gravity hole device and sliding-adjustable disc gravity device for extra heavy screen frames, which makes the printing process more stable and the printing effect is better.The installation of the screen frame clamp has 3 fixing handles, which makes the screen frame more firmly fixed.(Screen Frame is not included)
• 【Micro-registration Function】: There are 4 micro-adjust knobs in the two sides,it can adjust 0.79”(2cm) from left to right.And 1 micro-adjust pallet knob in the front,it can adjust 0.79”(2cm) from front to back.The chuck of the frame can be adjusted to 11cm according to the height of sbustrate.
• 【High Quality Material】The platen for this screen printing machine is made of environmental and high density melamine materials, which is anti-distortion, water proofing, corrosion resistance and easy to clear. You can glue your clothes directly on it.
• 【Parameter】The width of the screen clamp is 14.5"(370mm).The height of the screen clamp can be adjusted within 4.3" (110mm).which can be used for various screen frames with a thickness of less than 2"(50mm).
